External Maglock (800lbs/360kg)
SKU: CP-EXML800-GATE
Product Overview
External maglock with 360 kg / 800 lb holding force
FREE Technical Support
Mon - Fri | 8:30am - 5:00pm
Personalised Goods
Laser cutting and engraving services

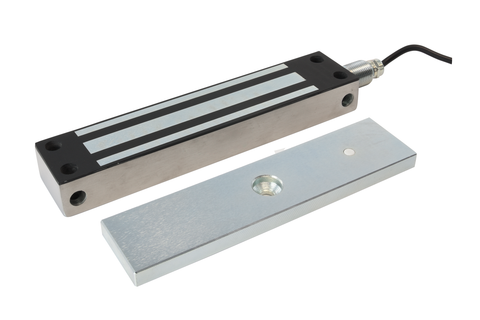

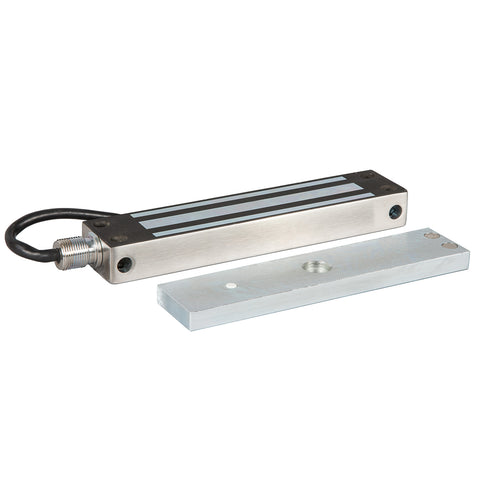

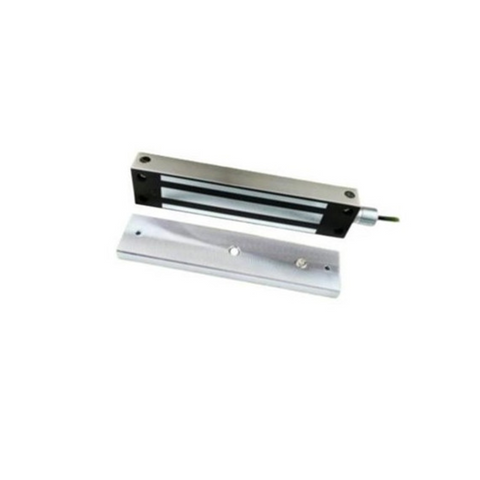

This robust stainless steel external maglock provides strength and security, rated up to 800lbs/360kg. Weatherproof and designed for outdoor use e.g. pedestrian gates, it supports 12V or 24Vdc operation and comes with conduit attachment for quick setup.
FEATURES
- Stainless steel casing
- Weatherproof
- Unmonitored
- Dual voltage
- Anti-residual magnetism feature
- Fail-safe (=power to lock)
- Side and face fixings
TECHNICAL INFORMATION
- Up to 360kg (800lb) holding force
- 12Vdc with 500mA current draw
- 24Vdc with 250mA current draw
- 20mm male conduit fitting

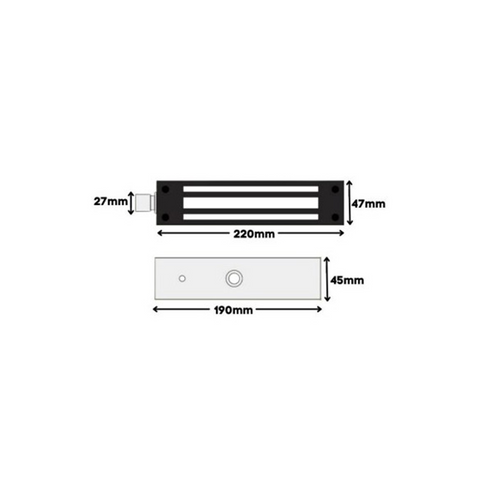

- Dimensions: 220mm x 47mm x 28mm
- Armature plate: 190mm(L) x 45mm(W) x 13mm(D)
- Weight: 2.5kg (approx.)
- Operating temp: -10°C to 55°C

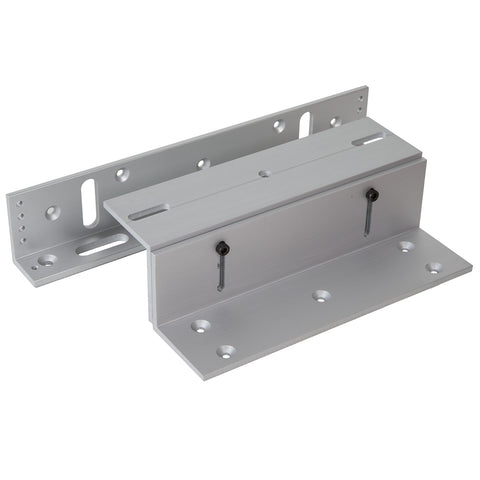

Suitable brackets: CP-EM500ZLW (ZL Bracket)
