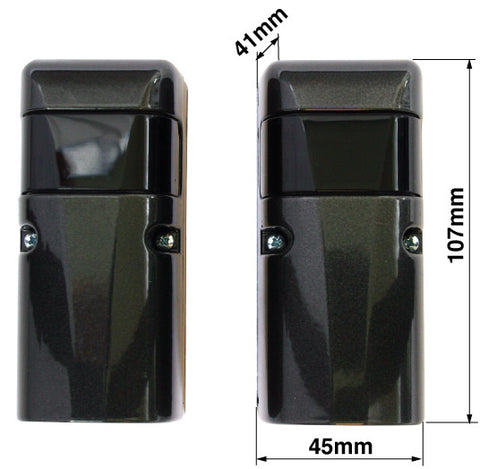

FIT METAL Anti-Vandal Photocell Pair (Wired)
SKU: ACG8009
Product Overview
FIT METAL is a 12 or 24 Vac/dc infrared photocell with anti-vandal housing. They are encased in a cast metal housing and reinforced plastic, offering a high level of protection against impact damage. This is the wired model for both Rx and Tx.
FREE Technical Support
Mon - Fri | 8:30am - 5:00pm
Personalised Goods
Laser cutting and engraving services
The fields of application are the classic ones pertaining to safety and presence detection systems and are recommended for applications in areas prone to vandalism..
It is small and its optics can be adjusted ±90° horizontally and ±15° vertically offering a detection range of 15m.
Technical Specification:
- Power supply 12/24 Vac/dc
- TX consumption 65 mA at 24Vac
- RX consumption 30 mA at 24Vac
- Wave length 950 nm
- Modulation 1.33 KHz
- Current commutable by the relay 1 A at 24Vac
- Rating IP55
- Range 15 m
This illustration is only intended to demonstrate common applications. It must not be used in place of a risk assessment – which should be carried out by a qualified professional on an individual case-by-case basis.
