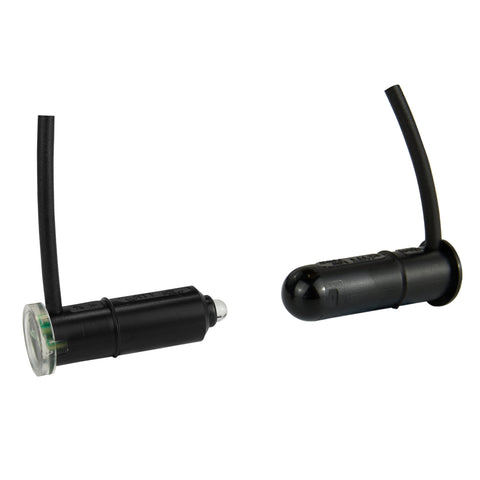

Opto Edge Kit (TX 12m & RX w/ free end)
SKU: 99401
Order in the next 0h:0m:0s for same-day dispatch!
Subject to stock availability.
Product Overview
The Opto Edge Low-Power-SIGNAL sensors for industrial doors, chooses the output frequency automatically according to the respective conditions.
FREE Technical Support
Mon - Fri | 8:30am - 5:00pm
Personalised Goods
Laser cutting and engraving services

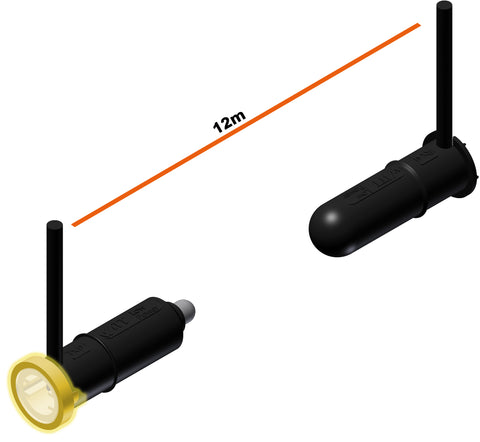

12 meter range. This kit has a supply cable to free ends, there is a version with supply cable to molex plug.
For a lower current consumption in battery mode the output frequency will be reduced to 400Hz. This results in more life for the batteries. The wireless transmitted safety signals will be processed in the control module which then gives out the required output frequency for the door control. With a direct connection of the opto edge Low-Power-SIGNAL to the door control, using the spiral cable, a standard output frequency of typ. 900Hz will be created. This is essential to assure compatibility to all common door controls on the market. In the area of energy efficiency and integrated diagnostic function the Low-Power-SIGNAL sets new benchmarks.
- 1 – 12m range
- Automatic operating mode recognition spiral cable/battery
- Extremely low current consumption
- Integrated diagnostic system with a visual display
- LED indicator for switching state
- Larger gate-width possible
- Less sensitive to wind load and bending
- High electromagnetic interference immunity
- Resistant against voltage reversal and short-circuits
- Regulated transmit power
- Compatible with all common door controls
- 3/12VDC
